XFLOW  USER  GUIDE



This user guide is organized into the following sections:



  1. Models
  2. Rules
  3. Tools
  4. Web Services
  5. Events
  6. Security



1. Xflow Models



An XFlow model is represented as a directed graph with a set of constraints. A directed graph consists of nodes and transitions between nodes. An XFlow graph has the following types of nodes:



A Start node is simply an indicator to denote where a workflow starts. Similarly an End node indicates where a workflow ends.
Start and End nodes do not do any processing – they are simply markers used by the workflow engine.

A Process node indicates the name of an application or an application component that will perform processing on a work-item.

An And node is used to synchronize two or more parallel flows that transition into it. For example in the graph below, if P1 and P2 both transition to an And node and the And node transitions to P3, then if P1 completes processing of a work item, the engine will wait for P2 to also complete processing before transitioning to P3.







An Or node is used in the case where a flow should continue when any one of its incoming nodes transitions into it. Thus in the example below if any one of  P1, P2, P3 transitions into the Or node, the flow continues on to P4.  In our example, if P2 transitions first to the Or node, then the transition to P4 occurs. If at a later point P1 or P3 completes its workitem, it will have no effect on the flow.







A Container node contains the name of another XFlow model – it is in fact a sub-workflow. Container nodes are useful as a means of hiding sub-workflows within the larger workflow.  Container workflows may execute within the main thread or be spawned off as a separate workflow instance. A container node that has a transition out of it executes within the thread. A container node that has no transition out of it executes as a separate thread (i.e. a new workflow instance is created).



These are the following constraints on the XFlow directed graph:



  1. There must be one and only one Start node.
  2. A Start node must transition to one or more Process or Container nodes and no transitions going in.
  3. There must be one and only one End node.
  4. An End node must have no transitions going out.
  5. An And node must have two or more transitions going into it.
  6. An And node must have at least one transition going out of it.
  7. An And node may transition to a Proceess node, a Container node, an And node, an Or node or an End node
  8. An Or node must have two or more transitions going into it.
  9. An Or node must have at least one transition going out of it.
  10. An Or node may transition to a Proceess node, a Container node, an And node, an Or node or an End node
  11. A Process node must have at least one transition going out of it.
  12. A Process node may transition to a Process node, a Container node, an And node, an Or node or an End node
  13. A Container node may transition to no node, a Process node, a Container node, an And node, an Ord node or an End node.



You can attach a rule to any transition in an XFlow model . See section 2 on XFlow Rules.



XFlow models are represented in the system as XFLOW-XML. The schema is given in Appendix A.

Here are examples of valid and invalid XFlow models.



Example of a valid XFlow model





                                                       A valid XFlow model

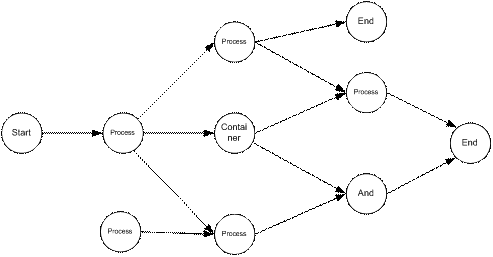

Examples of invalid XFlow models



This one violates constraint #4:





This one violates constraints #1 and #5:





This one violates constraints #3 and #7:





[back to top]





2. XFlow Rules



Simple rules may be defined on a transition from a process node to another in a workflow model.
During execution of the workflow, the XFlow server evaluates the rule on the work item to determine if a transition is to be taken.
There are 3 possible ways in which a rule can be expressed:





Type 1 XFlow Rule Expressions



A Type 1 XFlow rule expression has the following syntax. Spaces are significant in the rule expression.



    [<method name> <operator> <literal>]



<operator> is one of the following:  ==, !=, <, >, <=, >=



Examples:



    [intValue > 10]                           This assumes that the payload is an Integer object

    [getAge <= 21]                          This assumes that the payload is an instance of a class that has a getAge() method
    [isActive == false]                      This assumes that the payload is an instance of a class that has an isActive() method

    [isApproved != true]                  This assumes that the payload is an instance of a class that has an isApproved() method

    [getName == Harry Martin]       This assumes that the payload is an instance of a class that has a getName method



Here is an example of a workflow model with Type 1 rules:



<xflow name="Example1">

    <nodes>

        <node id="StartNode" type="Start"/>

        <node id="P1" type="Process"/>

        <node id="P2" type="Process"/>

        <node id="P3" type="Process"/>

        <node id="P4" type="Process"/>

        <node id="EndNode" type="End"/>

    </nodes>

    <transitions>

        <transition from="StartNode" to="P1"/>

        <transition from="P1" to="P2">

            <rule>[intValue &lt; 10]</rule>

        </transition>

        <transition from="P2" to="P3>

            <rule>[getAge == 25]</rule>

        </transition>

        <transition from="P3" to="P4">

            <rule>[getName != John Doe]</rule>

        </transition>

        <transition from="P4" to="EndNode"/>

    </transitions>

</xflow>



Type 2 XFlow Rule Expressions



A Type 2 XFlow rule expression has the following syntax. Spaces are significant in the rule expression.



    [property.<property name> <operator> <literal>]



<operator> is one of the following:  ==, !=, <, >, <=, >=



Examples:



    [property.quantity > 10]                           This assumes that the work item property is called “quantity” and is an Integer object

    [property.age <= 21]                               This assumes that the work item property is called “age” and is an Integer object
    [property.active == false]                         This assumes that the work item property is called “active” and is a Boolean object

    [property.approved != true]                     This assumes that the work item property is called “approved” and is a Boolean object

    [property.name == Harry Martin]             This assumes that the work item property is called “name” and is a String object



Here is an example of a workflow model with Type 2 rules:



<xflow name="Example1">

    <nodes>

        <node id="StartNode" type="Start"/>

        <node id="P1" type="Process"/>

        <node id="P2" type="Process"/>

        <node id="P3" type="Process"/>

        <node id="P4" type="Process"/>

        <node id="EndNode" type="End"/>

    </nodes>

    <transitions>

        <transition from="StartNode" to="P1"/>

        <transition from="P1" to="P2">

            <rule>[property.quantity &lt; 10]</rule>

        </transition>

        <transition from="P2" to="P3>

            <rule>[property.age == 25]</rule>

        </transition>

        <transition from="P3" to="P4">

            <rule>[property.name != John Doe]</rule>

        </transition>

        <transition from="P4" to="EndNode"/>

    </transitions>

</xflow>



Type 3 XPATH expressions



XPATH expressions are valid only for work items with a payload type of XML. Using XML payloads and XPATH rules is one of  the best ways of exploiting the  power of XFlow. The syntax of XPATH may be found at:  http://www.w3.org/TR/2003/WD-xpath20-20030502/ and a good tutorial at: http://www.zvon.org/xxl/XPathTutorial/General/examples.html



For example, if our work item has an XML payload such as the following:



<book>

   <title>XFlow User Guide</title>

   <detail>

       <price>10.00</price>

       <pages>120</pages>

       <author>John Doe</author>

       <inventory copies="50"/>

    </detail>

</book>



Here is an example of  a workflow model with Type 3 rules that  could operate on the XML payload above:



<xflow name="XMLExample">

    <nodes>

        <node id="StartNode" type="Start"/>

        <node id="P1" type="Process"/>

        <node id="P2" type="Process"/>

        <node id="P3" type="Process"/>

        <node id="P4" type="Process"/>

        <node id="P5" type="Process"/>

        <node id="EndNode" type="End"/>

    </nodes>

    <transitions>

        <transition from="StartNode" to="P1"/>

        <transition from="P1" to="P2"/>

        <transition from="P2" to="P3">

            <rule>//book/detail/inventory[@copies &gt; 50]</rule>

        </transition>

        <transition from="P2" to="P4">

            <rule>//book/detail/inventory[@copies &lt;= 50]</rule>

        </transition>

        <transition from="P3" to="P5">

            <rule>//book[title = 'XFlow User Guide' &amp;&amp; detail/price = 10.00]</rule>

        </transition>

        <transition from="P4" to="P5"/>

        <transition from="P5" to="EndNode"/>

    </transitions>

</xflow>



Here are some examples of  more XPATH expressions (using our example payload):



Does book contain a title called “XFlow User Guide”?    Result: true

//book[title = 'XFlow User Guide']



Does book contain the title "XFlow User Guide" and price is = 10.00   Result: true

//book[title = 'XFlow User Guide' && detail/price = 10.00]



Does book contain the title "XFlow User Guide" and price is = 10.00 and inventory copies > 50?  Result: false

//book[title = 'XFlow User Guide' and detail/pages < 1000 and detail/inventory[@copies > 50]]



[back to top]





3. XFlow Tools



You can run the following XFlow tools on a command line. These tools are meant for administrative and/or debugging purposes.



The syntax for each tool is given below:



DeployModel



Usage:           java xflow.tools.DeployModel  <xflow-xml file name>



Example:       java xflow.tools.DeployModel   MyWorkflowModel.xflow



Description:   Deploys a workflow model as defined in the given XFLOW-XML file. If a model of the same name has already
                     been deployed, this model will be deployed with a version number incremented by 1.



AbortWorkflow



Usage:           java xflow.tools.AbortWorkflow <workflow instance ID>



Example:       java xflow.tools.AbortWorkflow  35



Description:   Aborts an active workflow instance with the given ID.



GetNextWorkItem



Usage:            java xflow.tools.GetNextWorkItem <workflow model name>  <process name>



Example:         java xflow.tools.GetNextWorkItem  MyWorkflowModel   CheckCredit



Description:    This tool  mimics a workflow process and allows you to peek into the next work items bound for that process.
                      Useful  for debugging.



GetWorkflowState



Usage:            java xflow.tools.GetWorkflowState <workflow instance ID>



Example         java xflow.tools.GetWorkflowState   123



Description:    Retrives the state of an active workflow instance. Useful for debugging.



GetVar



Usage:            java xflow.tools.GetVar  <workflow instance ID>  <variable name>



Example:        java xflow.tools.GetVar   123   CreditScore



Description:    Allows you to peek into the variables within a workflow instance. Useful for debugging.





SetVar



Usage:            java xflow.tools.SetVar  <workflow instance ID>   <variable name>  <variable value>



Example:         java xflow.tools.SetVar  123  CreditScore 784



Description:     Allows you to set a variable in a workflow instance. Useful for debugging or affecting the workflow’s execution state.



GetProcessNodes



Usage:             java xflow.tools.GetProcessNodes   <workflow instance ID>



Example:         java xflow.tools.GetProcessNodes  123



Description:     Returns a list of all the process nodes in a given workflow instance.



GetActiveWorkflowInstances



Usage:             java xflow.tools.GetActiveWorkflowInstances



Description:     Returns a list of states of all currently active workflow instances.



GetAllWorkflowInstances



Usage:             java xflow.tools.GetAllWorkflowInstances   [workflow name]



Description:     Returns a list of states of all workflow instances. If workflow name is given, the list will only contain the workflow instances with that name.



[back to top]







4.     XFlow Web Services



An XFlow participant process may communicate with the XFlow server using web services. This is the only method if the participant process is a non-Java application or if the participant process is running outside of the organization hosting the XFlow server.  Using XFlow Web Services, a participant process can do the following:



1.      Deploy workflows

2.      Start and abort workflows

3.      Get Workflow states

4.      Get and complete work items

5.      Get and set workflow variables



There are some restrictions to the types of objects that can serve as work item payloads, work-item properties and variable values.  These must be of type XML, String, or a primitive Java type such as Integer, Double, Boolean, etc.



The WSDL for XFlow is given in Appendix B.



Calling an XFlow web service from a Java client



A Java client may invoke an XFlow web service using a framework such as JAXM or Axis.

Here is an example of a client invoking the “start workflow” operation using Axis:



import org.apache.axis.client.Call;

import org.apache.axis.client.Service;

import org.apache.axis.encoding.XMLType;

import org.apache.axis.encoding.ser.BeanSerializerFactory;

import org.apache.axis.encoding.ser.BeanDeserializerFactory;

import org.apache.axis.utils.Options;

import javax.xml.namespace.QName;

import javax.xml.rpc.ParameterMode;



import xflow.common.*;

import xflow.security.*;



public class StartWorkflowWS {

   public static void main(String [] args) throws Exception {



       String endpoint = "http://localhost:8080/axis/services/XflowService";

       String method = "startWorkflow";



       Service service = new Service();

       Call call = (Call) service.createCall();



       QName qn = new QName( "urn:XflowService", "WorkItemId" );



       call.registerTypeMapping(WorkItemId.class, qn,

                                new BeanSerializerFactory(WorkItemId.class, qn),

                                new BeanDeserializerFactory(WorkItemId.class, qn));



       qn = new QName( "urn:XflowService", "WorkflowId" );

       call.registerTypeMapping(WorkItemId.class, qn,

                                new BeanSerializerFactory(WorkflowId.class, qn),

                                new BeanDeserializerFactory(WorkflowId.class, qn));



       QName qn1 = new QName( "urn:XflowService", "WorkItem" );

       call.registerTypeMapping(WorkItem.class, qn1,

                                new BeanSerializerFactory(WorkItem.class, qn1),

                                new BeanDeserializerFactory(WorkItem.class, qn1));



       QName qn2 = new QName( "urn:XflowService", "User" );

       call.registerTypeMapping(User.class, qn2,

                                new BeanSerializerFactory(User.class, qn2),

                                new BeanDeserializerFactory(User.class, qn2));



       call.setTargetEndpointAddress( new java.net.URL(endpoint) );

       call.setOperationName( method );

       call.addParameter( "op1", XMLType.XSD_STRING, ParameterMode.IN );

       call.addParameter( "op2", XMLType.XSD_INT, ParameterMode.IN );

       call.addParameter( "op3", qn1, ParameterMode.IN );

       call.addParameter( "op4", qn2, ParameterMode.IN );



       String workflowName = “SimpleWorkflow”;

       Integer version = new Integer(-1);

       WorkItem witem = new WorkItem ();

       witem.setPayload (new Integer(1));

       witem.setPayloadType (WorkItem.JAVA_OBJECT);

       User user = new User ("foo", "foo");

       call.invoke( new Object [] { workflowName, version, witem, user });



       System.out.println("Workflow started.");

   }

}



An alternative method of using the XFlow web service operations is to generate a JAVA API from the XFlow WSDL and invoking the methods of the generated API.



Refer to XFlow webservice example in the examples/webservice folder in the XFlow distribution.



[back to top]





5. XFlow Events



The server publishes events when the following occur:





By subscribing to these events and saving them, you can collect useful data about the workflows and workflow instances in the system.
The data could serve as a log or an audit trail or as a source for generating reports and statistics of workflow activity.

The server publishes each event as an XML payload wrapped in a SOAP envelope. Examples of the messages for each event are given in Appendix C.



The following code shows you how to subscribe to XFlow events:



import java.io.*;

import java.util.*;

import javax.jms.*;

import xflow.common.XflowException;

import xflow.messaging.JMSSubscriber;

import xflow.messaging.JMSTopicConnection;



public class EventsHandler implements MessageListener {



       private JMSSubscriber subscriber;



       /*

        *  Constructor

        */

       public EventsHandler() {

              try {

                      // Initialize the JMS connection

                     JMSTopicConnection.initialize();



                      // Subscribe to the topic XFLOW.EVENT

                     subscriber = new JMSSubscriber(this, "XFLOW.EVENT", null);



              } catch (XflowException e) {

                     e.printStackTrace();

                     System.out.println("Can't set up JMS Subscription");

              } catch (JMSException e){

                     e.printStackTrace();

              }

       }



       /*

        *  Callback method when an event message arrives

        */

       public void onMessage(Message evt) {



              String evtXML = null;

              System.out.println("Got a message...");

              try {

                     if (evt instanceof TextMessage) {

                           evtXML = ((TextMessage) evt).getText();

                             System.out.println (evtXML);

                             // Process the event here



                     } else {

                           System.out.println("Message not recognized.");

                           return;

                     }

              } catch (JMSException e) {

                     e.printStackTrace();

              }

       }



       /*

        *   Main

        */

       public static void main (String[] args) throws Exception {

            new EventsHandler();

       }

}



Note that to run the above program, your class path must include the directory where jndi.properties is located. This file contains the URL for the  JNDI server that will return the TopicConnectionFactory for establishing JMS connections with the server. This file is located in the <xflow>\conf directory. When you execute tools\setclasspath, this directory will be included in your class path.



XFlow EventsHandler



The XFlow Events Handler is an out-of-the-box events subscriber that saves the events it receives in a database.

The database schema is given in Appendix D. It is a standalone application. To run it, you must first start the XFlow server (JBoss), then do the following:



Start a console

cd <xflow>

tools\setclasspath

java xflow.events.EventsHandler  conf\db.properties



db.properties contains the database configuration where the events tables will be stored. The default database is Hypersonic SQL.



[back to top]





5.     XFlow Security



All requests made to the XFlow server are password authenticated.  The default out-of-the-box authenticator is the class xflow.security.XflowUserAuthenticator.  This class implements the xflow.security.Authenticator interface which contains a single method, “authenticate”.  This is stubbed out to always return true.



public interface Authenticator {

    public boolean authenticate (String userName, String password);

}



The XFlow architecture allows you to plug in your own Authenticator. To do this you must write a class that implements Authenticator.
Then do the following:



  1. Compile your class and create a jar file. Place the jar file, and all other jar files it is dependent on, in <xflow>\lib
  2. Modify the file, <xflow>\src\xflow\server\controller\ejb-jar.xml  and replace the env-entry-value of the authenticator env-entry with the name of your class.  (The default entry is set to: xflow.security.XflowUserAuthenticator)
  3. cd <xflow>
  4. ant xflow-jar   (this assumes you have ant in your path)
  5. deployJar



[back to top]





Appendix A  XFLOW-XML Schema



<?xml version="1.0" encoding="UTF-8"?>

<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified">



<xs:element name="node" type="xs:string">

   <xs:attribute name="id" type="xs:string" use="required"/>

   <xs:attribute name="type" use="required">

       <xs:simpleType>

           <xs:restriction base="xs:string">

               <xs:enumeration value="Start"/>

               <xs:enumeration value="End"/>

               <xs:enumeration value="Process"/>

               <xs:enumeration value="Container"/>

               <xs:enumeration value="And"/>

           </xs:restriction>

      </xs:simpleType>

   </xs:attribute>

 <xs:attribute name="containee" type="xs:string" use="optional"/>

</xs:element>


<xs:element name="rule" type="xs:string"/>

<xs:element name="transition">

   <xs:attribute name="from" type="xs:string" use="required"/>

   <xs:attribute name="to" type="xs:string" use="required"/>

   <xs:complexType>

       <xs:element ref="rule" minOccurs="0"/>

   </xs:complexType>

</xs:element>



<xs:element name="nodes">

    <xs:complexType>

            <xs:sequence>

                        <xs:element ref="node" maxOccurs="unbounded"/>

            </xs:sequence>

    </xs:complexType>

</xs:element>



<xs:element name="transitions">

    <xs:complexType>

            <xs:sequence>

                        <xs:element ref="transition" maxOccurs="unbounded"/>

            </xs:sequence>

    </xs:complexType>

</xs:element>



<xs:element name="xflow">

    <xs:complexType>

            <xs:sequence>

                        <xs:element ref="nodes" />

                        <xs:element ref="transitions" />

            </xs:sequence>

    </xs:complexType>

    <xs:attribute id="name" type="xs:string" use="required"/>

</xs:element>



</xs:schema>



[back to top]





Appendix B  XFlow WSDL



<?xml version="1.0" encoding="UTF-8" ?>

<wsdl:definitions targetNamespace="http://localhost:8080/axis/services/XflowService" xmlns="http://schemas.xmlsoap.org/wsdl/" xmlns:apachesoap="http://xml.apache.org/xml-soap" xmlns:impl="http://localhost:8080/axis/services/XflowService" xmlns:intf="http://localhost:8080/axis/services/XflowService" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/" xmlns:tns1="urn:XflowService" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:wsdlsoap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:xsd="http://www.w3.org/2001/XMLSchema">



<wsdl:types>

<schema targetNamespace="urn:XflowService" xmlns="http://www.w3.org/2001/XMLSchema">

    <import namespace="http://schemas.xmlsoap.org/soap/encoding/" />

    <complexType name="WorkflowId">

       <sequence>

           <element name="id" type="xsd:int" />

           <element name="intValue" nillable="true" type="xsd:int" />

           <element name="value" type="xsd:int" />

      </sequence>

    </complexType>

    <complexType name="User">

       <sequence>

          <element name="name" nillable="true" type="xsd:string" />

          <element name="password" nillable="true" type="xsd:string" />

       </sequence>

    </complexType>

  <complexType name="WorkItemId">

     <sequence>

         <element name="id" type="xsd:int" />

         <element name="value" type="xsd:int" />

     </sequence>

  </complexType>

  <complexType name="WorkItem">

     <sequence>

         <element name="id" nillable="true" type="tns1:WorkItemId" />

         <element name="payload" nillable="true" type="xsd:anyType" />

         <element name="payloadType" nillable="true" type="xsd:string" />

         <element name="properties" nillable="true" type="apachesoap:Map" />

         <element name="workflowId" nillable="true" type="tns1:WorkflowId" />

     </sequence>

  </complexType>

 </schema>

<schema targetNamespace="http://xml.apache.org/xml-soap" xmlns="http://www.w3.org/2001/XMLSchema">

  <import namespace="http://schemas.xmlsoap.org/soap/encoding/" />

  <complexType name="Map">

     <sequence>

         <element maxOccurs="unbounded" minOccurs="0" name="item">

         <complexType>

             <all>

             <element name="key" type="xsd:anyType" />

             <element name="value" type="xsd:anyType" />

             </all>

         </complexType>

         </element>

     </sequence>

  </complexType>

</schema>

</wsdl:types>



<wsdl:message name="getVariableResponse">

  <wsdl:part name="getVariableReturn" type="xsd:anyType" />

</wsdl:message>

  <wsdl:message name="startWorkflowResponse" />

<wsdl:message name="setVariableRequest">

  <wsdl:part name="in0" type="xsd:int" />

  <wsdl:part name="in1" type="xsd:string" />

  <wsdl:part name="in2" type="xsd:anyType" />

  <wsdl:part name="in3" type="tns1:User" />

</wsdl:message>

<wsdl:message name="abortWorkflowResponse" />

<wsdl:message name="abortWorkflowRequest">

  <wsdl:part name="in0" type="xsd:int" />

  </wsdl:message>

<wsdl:message name="setVariableResponse" />

<wsdl:message name="startWorkflowRequest">

  <wsdl:part name="in0" type="xsd:string" />

  <wsdl:part name="in1" type="xsd:int" />

  <wsdl:part name="in2" type="tns1:WorkItem" />

  <wsdl:part name="in3" type="tns1:User" />

</wsdl:message>

<wsdl:message name="getVariableRequest">

  <wsdl:part name="in0" type="xsd:int" />

  <wsdl:part name="in1" type="xsd:string" />

  <wsdl:part name="in2" type="tns1:User" />

</wsdl:message>



<wsdl:portType name="XflowService">

<wsdl:operation name="getVariable" parameterOrder="in0 in1 in2">

  <wsdl:input message="intf:getVariableRequest" name="getVariableRequest" />

  <wsdl:output message="intf:getVariableResponse" name="getVariableResponse" />

</wsdl:operation>

<wsdl:operation name="setVariable" parameterOrder="in0 in1 in2 in3">

  <wsdl:input message="intf:setVariableRequest" name="setVariableRequest" />

  <wsdl:output message="intf:setVariableResponse" name="setVariableResponse" />

</wsdl:operation>

<wsdl:operation name="startWorkflow" parameterOrder="in0 in1 in2 in3">

  <wsdl:input message="intf:startWorkflowRequest" name="startWorkflowRequest" />

  <wsdl:output message="intf:startWorkflowResponse" name="startWorkflowResponse" />

</wsdl:operation>

<wsdl:operation name="abortWorkflow" parameterOrder="in0">

  <wsdl:input message="intf:abortWorkflowRequest" name="abortWorkflowRequest" />

  <wsdl:output message="intf:abortWorkflowResponse" name="abortWorkflowResponse" />

</wsdl:operation>

</wsdl:portType>



<wsdl:binding name="XflowServiceSoapBinding" type="intf:XflowService">

  <wsdlsoap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http" />

  <wsdl:operation name="getVariable">

     <wsdlsoap:operation soapAction="" />

     <wsdl:input name="getVariableRequest">

     <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/XflowService" use="encoded" />

     </wsdl:input>

     <wsdl:output name="getVariableResponse">

     <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/XflowService" use="encoded" />

     </wsdl:output>

  </wsdl:operation>

  <wsdl:operation name="setVariable">

     <wsdlsoap:operation soapAction="" />

     <wsdl:input name="setVariableRequest">

     <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/XflowService" use="encoded" />

     </wsdl:input>

     <wsdl:output name="setVariableResponse">

     <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/XflowService" use="encoded" />

     </wsdl:output>

  </wsdl:operation>

  <wsdl:operation name="startWorkflow">

     <wsdlsoap:operation soapAction="" />

     <wsdl:input name="startWorkflowRequest">

     <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/XflowService" use="encoded" />

     </wsdl:input>

     <wsdl:output name="startWorkflowResponse">

     <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/XflowService" use="encoded" />

     </wsdl:output>

  </wsdl:operation>

  <wsdl:operation name="abortWorkflow">

     <wsdlsoap:operation soapAction="" />

     <wsdl:input name="abortWorkflowRequest">

     <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/XflowService" use="encoded" />

     </wsdl:input>

     <wsdl:output name="abortWorkflowResponse">

     <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/XflowService" use="encoded" />

     </wsdl:output>

  </wsdl:operation>

</wsdl:binding>



<wsdl:service name="XflowServiceService">

<wsdl:port binding="intf:XflowServiceSoapBinding" name="XflowService">

  <wsdlsoap:address location="http://localhost:8080/axis/services/XflowService" />

</wsdl:port>

</wsdl:service>



</wsdl:definitions>



[back to top]





Appendix C  Examples of XFLOW Event Messages



ModelDeployed Event



<SOAP-ENV:Envelope  xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/>

    <SOAP-ENV:Header/>

    <SOAP-ENV:Body>

        <ModelDeployedEvent xmlns="http://xflow.net/events">

            <User>rtan</User>

            <WorkflowName>CreditApproval</WorkflowName>

            <WorkflowVersion>1</WorkflowVersion>

        </ModelDeployedEvent>

    </SOAP-ENV:Body>

</SOAP-ENV:Envelope>





WorkflowStarted Event



<SOAP-ENV:Envelope  xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/>

    <SOAP-ENV:Header/>

    <SOAP-ENV:Body>

        <WorkflowStartedEvent xmlns="http://xflow.net/events">

            <User>rtan</User>

            <WorkflowName>CreditApproval</WorkflowName>

            <WorkflowVersion>1</WorkflowVersion>

            <WorkflowInstanceId>1233</WorkflowInstanceId>

            <ParentWorkflowInstanceId/>

            <WorkItem>

                 <WorkItemId>9999</WorkItemId>

                 <Payload type="XML">

                      <book>

                           <title>Great Expectations</title>

                           <author>Charles Dickens</author>

                           <isbn>1828282882</isbn>

                           <price>12.99</price>

                      </book>

                 </Payload>

            </WorkItem>

        </WorkflowStartedEvent>

    </SOAP-ENV:Body>

</SOAP-ENV:Envelope>





WorkflowSuspended Event



<SOAP-ENV:Envelope  xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/>

    <SOAP-ENV:Header/>

    <SOAP-ENV:Body>

        <WorkflowSuspendedEvent xmlns="http://xflow.net/events">

            <User>rtan</User>

            <WorkflowName>CreditApproval</WorkflowName>

            <WorkflowVersion>1</WorkflowVersion>

            <WorkflowInstanceId>1233</WorkflowInstanceId>

        </WorkflowSuspendedEvent>

    </SOAP-ENV:Body>

</SOAP-ENV:Envelope>





WorkflowResumed Event



<SOAP-ENV:Envelope  xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/>

    <SOAP-ENV:Header/>

    <SOAP-ENV:Body>

        <WorkflowResumedEvent xmlns="http://xflow.net/events">

            <User>rtan</User>

            <WorkflowName>CreditApproval</WorkflowName>

            <WorkflowVersion>1</WorkflowVersion>

            <WorkflowInstanceId>1233</WorkflowInstanceId>

        </WorkflowResumedEvent>

    </SOAP-ENV:Body>

</SOAP-ENV:Envelope>





WorkflowAborted Event



<SOAP-ENV:Envelope  xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/>

    <SOAP-ENV:Header/>

    <SOAP-ENV:Body>

        <WorkflowAbortedEvent xmlns="http://xflow.net/events">

            <User>rtan</User>

            <WorkflowName>CreditApproval</WorkflowName>

            <WorkflowVersion>1</WorkflowVersion>

            <WorkflowInstanceId>1233</WorkflowInstanceId>

        </WorkflowStartedEvent>

    </SOAP-ENV:Body>

</SOAP-ENV:Envelope>





WorkflowCompleted Event



<SOAP-ENV:Envelope  xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/>

    <SOAP-ENV:Header/>

    <SOAP-ENV:Body>

        <WorkflowCompletedEvent xmlns="http://xflow.net/events">

            <User>rtan</User>

            <WorkflowName>CreditApproval</WorkflowName>

            <WorkflowVersion>1</WorkflowVersion>

            <WorkflowInstanceId>1233</WorkflowInstanceId>

        </WorkflowCompletedEvent>

    </SOAP-ENV:Body>

</SOAP-ENV:Envelope>





NodeTransition Event



<SOAP-ENV:Envelope  xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/>

    <SOAP-ENV:Header/>

    <SOAP-ENV:Body>

        <NodeTransitionEvent xmlns="http://xflow.net/events">

            <WorkflowName>CreditApproval</WorkflowName>

            <WorkflowVersion>1</WorkflowVersion>

            <WorkflowInstanceId>1233</WorkflowInstanceId>

            <From nodeId="222" nodeName="CheckCredit" nodeType="Process"/>

            <To   nodeId="223" nodeName="ApproveCredit" nodeType="Process"/>

            <WorkItem>

                 <WorkItemId>9999</WorkItemId>

                 <Payload type="XML">

                      <credit>

                          <ssn>83838838383</ssn>

                          <name>John Doe </name>

                          <score>800</score>

                      </credit>

                 </Payload>

            </WorkItem>

        </NodeTransitionEvent>

    </SOAP-ENV:Body>

</SOAP-ENV:Envelope>





VariableUpdated Event



<SOAP-ENV:Envelope  xmlns:SOAP-ENV=http://schemas.xmlsoap.org/soap/envelope/>

    <SOAP-ENV:Header/>

    <SOAP-ENV:Body>

        <VariableUpdatedEvent xmlns="http://xflow.net/events">

            <WorkflowName>CreditApproval</WorkflowName>

            <WorkflowVersion>1</WorkflowVersion>

            <WorkflowInstanceId>1233</WorkflowInstanceId>

            <Variable name="score" type="integer">800</Variable>

        </VariableUpdatedEvent>

    </SOAP-ENV:Body>

</SOAP-ENV:Envelope>





[back to top]





Appendix D  XFLOW Events Database Schema



create table Event (



   EventId int identity,

   EventType varchar(32) not null,

   Timestamp date not null,

   WorkflowName varchar(64) not null,

   WorkflowVersion int not null,

   WorkflowInstanceId int,

   ParentWorkflowInstanceId int,            -- only used if this is sub-workflow

   User varchar (64)

)



create table EventWorkItem (

   EventId int   not null,                  -- foreign key to Event table

   WorkItemInternalId  identity,

   WorkItemId int not null,

   PayloadType varchar(16),

   Payload varchar(5000)

)



create table EventWorkItemProperties (

   WorkItemInternalId int   not null,       -- foreign key to EventWorkItem table

   PropertyName varchar(64) not null,

   PropertyType varchar(16) not null,

   PropertyValue varchar(5000) not null

)



create table NodeTransitionEvent (

   EventId        int not null,             -- foreign key to Event table

   FromNodeName   varchar(64) not null,

   FromNodeType   varchar(16) not null,

   ToNodeName     varchar(64) not null,

   ToNodeType     varchar(16) not null

)





create table VariableUpdateEvent

   EventId        int not null,             -- foreign key to Event table

   VariableName   varchar(64) not null,

   VariableType   varchar(16) not null,

   VariableValue  varchar(5000) not null

)



[back to top]
